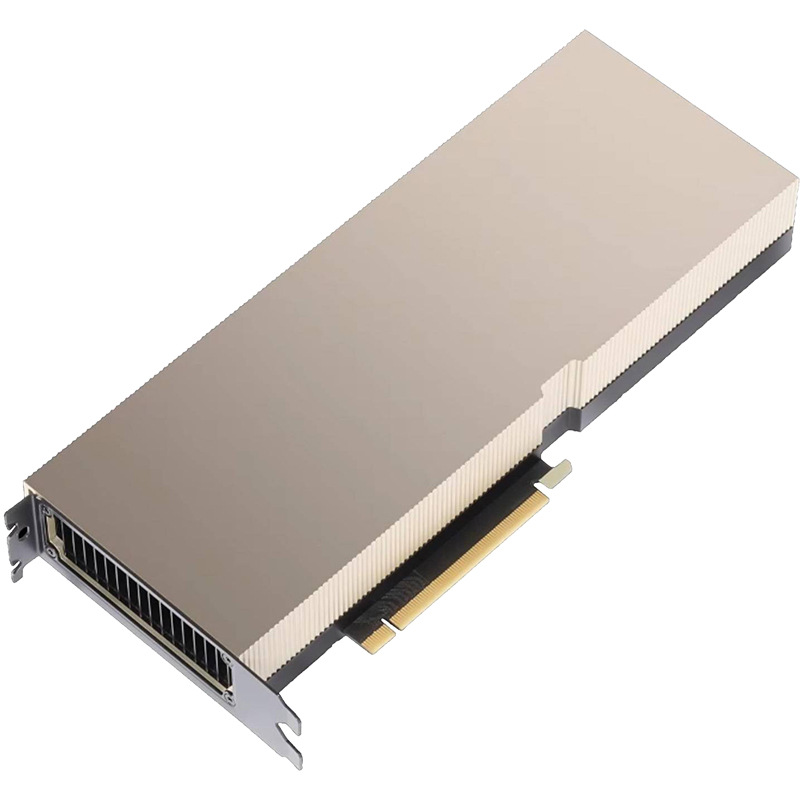

VIDIA A100 80GB PCIE GPU

Specification ： A100 80GB

Total board power 300 W default

300 W maximum

150 W minimum

Thermal solution Passive

Mechanical Form Factor Full-height, full-length (FHFL) 10.5”, dual-slot

GPU clocks Base: 1065 MHz

Boost: 1410 MHz

Performance States P0

VBIOS EEPROM size: 8 Mbit

UEFI: Supported

PCI Express interface PCI Express 4.0 ×16

Lane and polarity reversal supported

Multi-Instance GPU (MiG) Supported (seven instances)

Power connectors and headers One CPU 8-pin auxiliary power connector

Weight Board: 1170 grams (excluding bracket, extenders, and

bridges)

NVLink Bridge: 20.5 grams per bridge (x 3 bridges)

Bracket with screws: 20 grams

Long offset extender: 48 grams

Straight extender: 32 grams

Memory clock 1512 MHz

Memory type HBM2e

Memory size 80 GB

Memory bus width 5120 bits

Peak memory bandwidth Up to 1.94 TB/s

SR-IOV support Supported -- 20 VF (virtual functions)

BAR address (physical function) BAR0: 16 MiB1

BAR1: 128 GiB1

BAR3: 32 MiB1

BAR address (virtual function) BAR0: 5 MiB, (256 KiB per VF)1

BAR1: 80 GiB, 64-bit (4 GiB per VF)1

BAR3: 640 MiB, 64-bit (32 MiB per VF)1

Message signaled interrupts MSI-X: Supported
